Okwanjula

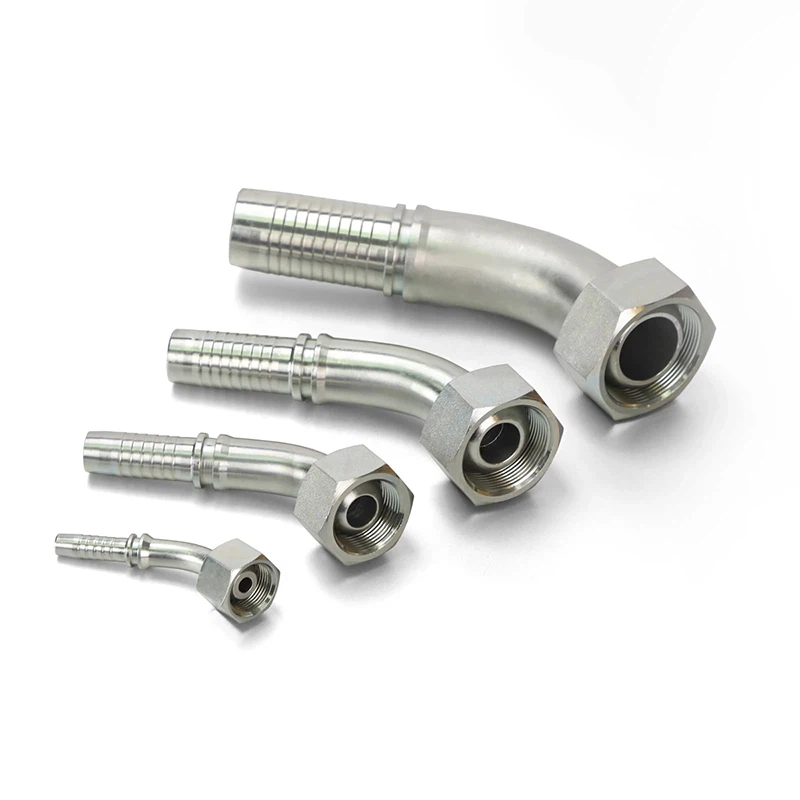

Ekisajja kyaffe ekisajja hose fitting kikolebwa yinginiya okuleeta obukuumi, okuvuba-obukakafu obukakafu mu kusaba kw'amazzi okwetaagisa. Ekoleddwa mu ngeri ya precision threading n’ebintu ebiwangaala, fitting eno ekakasa omulimu ogwesigika mu makolero, mobile, ne marine hydraulic systems.

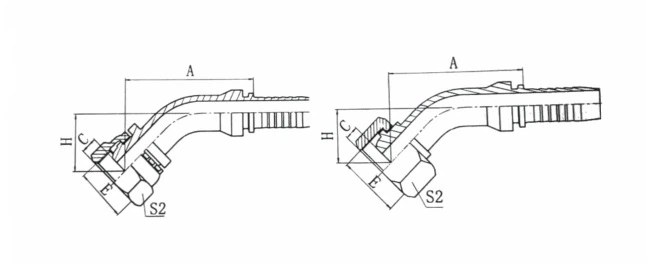

Ebikwata ku nsonga .
|
Ekitundu nnamba. |
Thread E . |
Hose bore . |
Ebipimo . |
||||
|
DN . |
OKWANGUWA |
A |
C |
H |
S2 |
||
|
20141-10-03 |
M10X1 |
5 |
03 |
41.1 |
2.5 |
20.7 |
14 |
|
20141-10-04 |
M10X1 |
6 |
04 |
43.2 |
2.5 |
21.5 |
14 |
|
20141-12-03 |
M12X1.5 |
5 |
03 |
40.9 |
4 |
21.2 |
17 |
|
20141-12-04 |
M12X1.5 |
6 |
04 |
43 |
4 |
22 |
17 |
|
20141-14-04 |
M14X1.5 |
6 |
04 |
43.4 |
4.5 |
21.3 |
19 |
|
20141-14-05 |
M14X1.5 |
8 |
05 |
45.5 |
4.5 |
22.2 |
19 |
|
20141-16-04 |
M16X1.5 |
6 |
04 |
43.7 |
4.5 |
21.4 |
22 |
|
20141-16-05 |
M16X1.5 |
8 |
05 |
45.8 |
4.5 |
22.5 |
22 |
|
20141-16-06 |
M16X1.5 |
10 |
06 |
47.4 |
4.5 |
24.1 |
22 |
|
20141-18-05T |
M18X1.5 |
8 |
05 |
46.8 |
4 |
22.6 |
24 |
|
20141-18-06 |
M18X1.5 |
10 |
06 |
48.5 |
4 |
24.2 |
24 |
|
20141-18-08 |
M18X1.5 |
12 |
08 |
52.2 |
4 |
25.7 |
24 |
|
20141-20-06T |
M20X1.5 |
10 |
06 |
48.2 |
5.5 |
23.9 |
27 |
|
20141-20-08 |
M20X1.5 |
12 |
08 |
62.1 |
5.5 |
27.2 |
27 |
|
20141-22-06T |
M22X1.5 |
10 |
06 |
58.4 |
5 |
25.7 |
27 |
|
20141-22-08 |
M22X1.5 |
12 |
08 |
62.1 |
5 |
27.2 |
27 |
|
20141-24-08T |
M24X1.5 |
12 |
08 |
61.1 |
5.5 |
26.1 |
30 |
|
20141-24-10 |
M24X1.5 |
16 |
10 |
75.4 |
5 |
29.6 |
30 |
|
20141-27-10DT . |
M27X1.5 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-27-10T |
M27X2 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-30-12D |
M30X1.5 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-30-12 |
M30X2 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-36-14T |
M36X2 |
22 |
14 |
83 |
7 |
32.64 |
41 |
|
20141-39-16T |
M39X2 |
25 |
16 |
88.2 |
7 |
33.95 |
46 |
|
20141-45-20T |
M45X2 |
32 |
20 |
99.1 |
8.5 |
38.4 |
55 |
|
20141-52-24T |
M52X2 |
40 |
24 |
114.1 |
9 |
43.4 |
60 |
Parameters/Technical Data .
|
Yiiye |
Zhejiang, China . |
Olunaku lw'okutuusa . |
Enteeseganya . |
|
Okukakasa . |
GB/T19001-2016 IDT ISO9001:2015 |
Okupakinga . |
Omutindo gw’okutunda ebweru w’eggwanga . |
|
Ekikozesebwa |
Ekyuma kya kaboni . |
Waranti . |
Omwaka 1 . |
|
Ekisanja ky’okusasula . |
TT . |
MOQ . |
2000 |
|
Kakwakkulizo |
Pya |
Erangi |
Zinki enjeru, langi zinki . |
Ebikwata ku Kampuni .
Ebirungi .
Lwaki abakugu balambika ebikozesebwa byaffe:
Obulamu bw'obuweereza obuwanvu 40% okusinga ku average y'amakolero .
Empeereza y'okufulumya eby'amangu essaawa 72 .
Bayinginiya b'okusaba abeewaddeyo abaweebwa buli akawunti enkulu .
Ddala-Okulabika mu biseera ng'oyita ku mukutu gwa bakasitoma .
FAQ .
Q: Ekisajja ekisajja eky’amazzi (hydraulic hose) kye ki?
A: Ekisajja ekikwata hoosi y’amazzi (male hydraulic hose fitting) kye kika ky’ekiyungo ekikoleddwa okusiba hoosi z’amazzi ku bitundu (okugeza, ppampu, vvaalu, silinda). Kirimu obuwuzi obw’ebweru obusikula mu mukazi akwatagana-omwalo oba adapter eriko emiguwa.
Q: Bika ki ebya bulijjo eby’ebisajja ebisajja ebikwata ku mazzi?
A: Ebika ebimanyiddwa ennyo mulimu:
JIC (Council y’amakolero ga Joint): Entuula za diguli 37 eziyaka.
NPT (National Pipe Tapered): Emiguwa egy’okusiba (tapered threads) egy’okusiba.
BSP (Payipu ya Bungereza eya mutindo): obuwuzi obukwatagana oba obuliko enkokola (BSPP/BSPT).
ORFS (O-Ring Face Seal): Feesi epapajjo nga erina o-Empeta olw’okukulukuta-ebiyungo ebiziyiza.
Metric: Emiguwa gigoberera omutindo gwa ISO/ DIN.
Q: Nkola ntya enkola entuufu ey’amazzi g’ekisajja?
A: Lowooza ku:
ekika ky'obuwuzi/obunene (okugeza, 1/2" NPT, JIC #8).
Okugereka puleesa (okukwatagana n’ebyetaago by’enkola).
Ebikozesebwa (Ekyuma, ekyuma ekitali kizimbulukuse, ekikomo).
Okukwatagana ne hoosi n’ebikozesebwa.
Q: Nziyiza ntya okukulukuta mu bintu ebisajja eby’amazzi?
A: Kakasa nti obuwuzi buyonjo era nga tebwonoonye.
Kozesa thread sealant (ku NPT) oba O-empeta (ku ORFs).
Ssiba ku ttooki esengekeddwa-Wewale-okunywezebwa.
Q: Nsobola okutabula emitendera egy’enjawulo egy’obuwuzi (okugeza, NPT ne BSP)?
A: Nedda.Okutabula obuwuzi kiyinza okuleeta okukulukuta oba okwonooneka. Kozesa adapters singa oyungako standards ezitafaanagana.
Q: Njawulo ki eri wakati wa NPT ne NPTF threads?
A: NPT (payipu ya payipu ey’eggwanga): yeetaaga okusiba.
NPTF (DrySeal): Ekoleddwa okusiba nga temuli kiziyiza naye ng’etera okukozesebwa nayo olw’obukuumi.
Q: Npimira ntya sayizi y’obuwuzi bw’amazzi g’ekisajja (male hydraulic fitting’s thread size)?
A: Kozesa kalifuuwa okupima obuwanvu obw’ebweru (OD) obw’obuwuzi n’okwebuuza ku kipande ky’obuwuzi. Weetegereze eddoboozi (obuwuzi buli yinsi ku bwakabaka, mm ku metric).
Q: Bikozesebwa ki eby’amazzi ebisajja ebikoleddwamu?
A: Ekyuma kya kaboni: Omuwendo-Effici, amaanyi amangi.
Ekyuma ekitali kizimbulukuse: okukulukuta-okuziyiza.
ekikomo: ekikozesebwa mu mbeera entono-okunyigirizibwa, embeera ezikosa.
Q: Ekipimo kya puleesa ekisinga obunene ku fittings z’abasajja kye ki?
A: ekyukakyuka okusinziira ku kika/ekintu (okugeza, ebikozesebwa mu JIC biyinza okukwata 5,000+ psi). Kebera ebikwata ku mukozi.
Q: Nsobola okuddamu okukozesa ebikozesebwa mu mazzi ebisajja?
A: Yee, bwe kiba nga tekiyonoonebwa. Kebera obuwuzi n’ebifo ebisiba oba byambala/enjatika nga tonnaddamu kukozesa.
Q: Lwaki fitting y’ekisajja kyange esigala ng’esumuludde?
A: Okukankana: Kozesa ekyuma eky’okunaaba oba thread-amazzi agasiba.
Torque enkyamu: Goberera specs z’abakola.
OBUGADDE OBULWADDE: zzaawo singa oggyibwamu.
Q: Nsobola kugula wa high-omutindo gw’amazzi g’ekisajja?
A: Okugula okuva mu basuubuzi abakakasibwa oba abakola amazzi. Okukakasa nti emitendera (SAE, ISO, DIN).
